Worldwide Recognized Clamping Solutions for More than 35 Years

SUPERBOLT

MEER INTERNATIONAL

is proud to be an official dealer of NORD-LOCK group products.

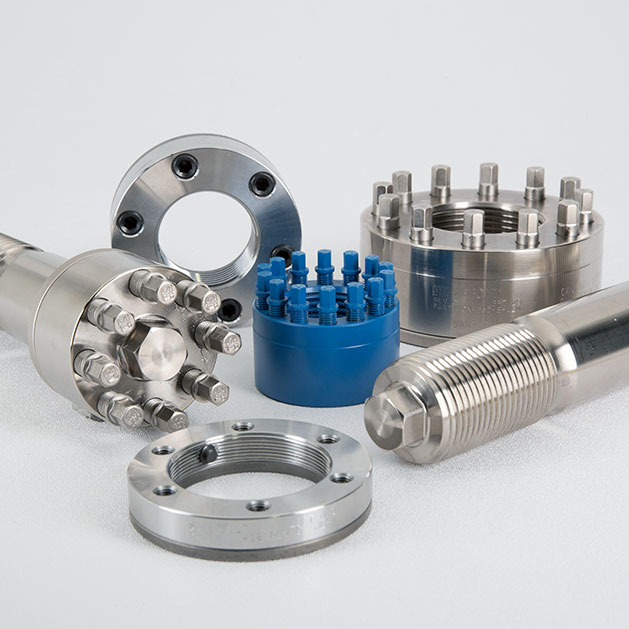

Superbolt was the first company in the world to revolutionize nuts and bolts with multi-jackbolt tensioning technology.

Multi-jackbolt tensioners (MJT) distribute the high preload required for tightening large diameter bolts into manageable torques by screwing the jackbolts through the nut body.

watch the video

Function of body is to absorb nut forces and it is manually screwed onto the thread of the bolt.

The tightening of the push screws generates a high force. Due to the small friction radii, low tightening torques are required.

Hardened washer protects surface from high stresses.

The thrust force of the many screws and the counter reaction force exerted by the bolt together generate a high clamping force.

The operating force of the bolt is equal to the sum of the thrust bolt forces. The stress on the bolt is tensile only.

BENEFITS

Extreme clamping force
Low torque normal hand tools are sufficient
Safer installation method for personnel
Quick installation and removal
Tightening of studs/bolts using tension only
The flexibility of the tensioners increases the elasticity of the studs/bolts, ensuring better tightening
Smaller footprint
Uniform tension transmission from one stud to another
Accuracy to within 10% of the specified bolt tension

Enter your keyword

MEER INTERNATIONAL

BENEFITS

SUPERBOLT - THE INNOVATIVE SOLUTION - FUNCTION AND BENEFITS

APPLICATIONS

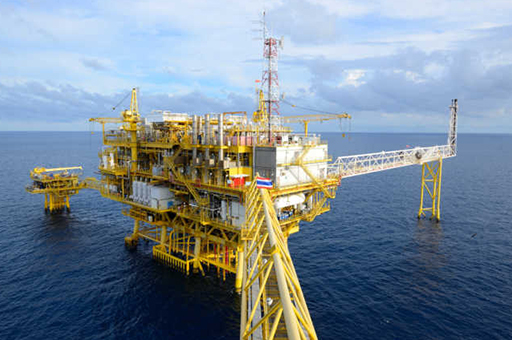

Oil & Gas

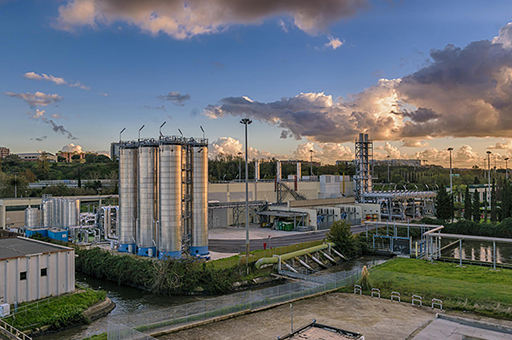

Power Generation

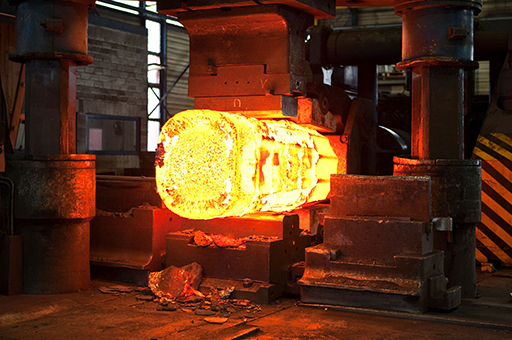

Steel Forging & Other Presses

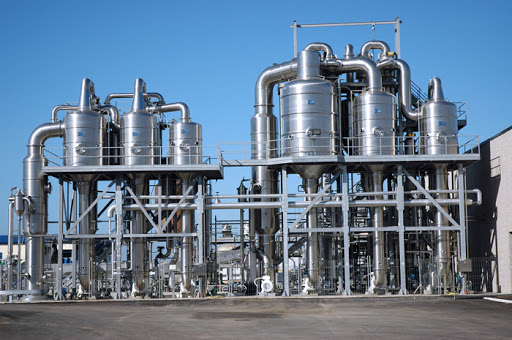

Manufacturing & Processing

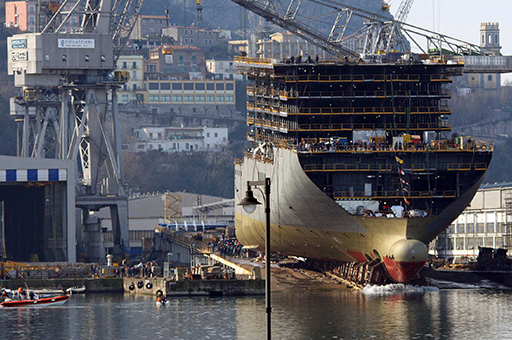

Shipbuilding & Marine
